Yongkang Baset Baees Machinery Co., ltd

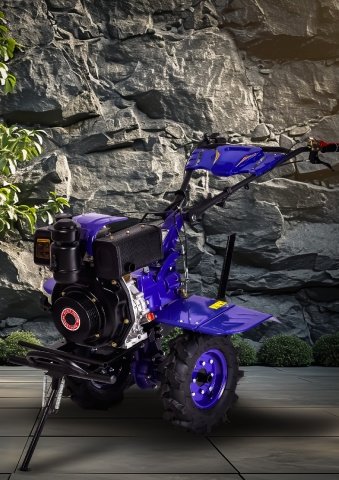

TILLER

BS-950A BS-950B BS-950K
10

MODEL BS-950A BS-950D BS-950K
ENGINE MODEL 170F ( GASOLINE ) 173F (DIESEL) 178F (DIESEL)
MAX.POWER HP(KW) 4.0/3600 ( KW/R/MIN) 3.9/3600 (KW/R/MIN) 4.41/3600 (KW/R/MIN)

DISPLACEMENT 212ML 211 ML 296ML
FUEL TANK CAPACITY 3.6L 2.5L 3.5L
STARTING MODE MANUAL MANUAL MANUAL
GEAR SHIFTING -1,0,1,2 -1,0,1,2 -1,0,1,2

TRANSMISSION GEAR GEAR GEAR
TILING WIDTH 950~1050MM 950~1050MM 950~1050MM
TILING DEPTH 150~300MM 150~300MM 150~300MM
BLADE TYPE 4GROUPS X 3PCS 4GROUPS X 3PCS 4GROUPS X 3PCS
TIRE 4.00-8 4.00-8 4.00-8

N.W/G.W 85/96KGS 96/107KGS 102/113KGS
PACKING MODE CARTON + IRON FRAME CARTON + IRON FRAME CARTON + IRON FRAME
PACKING SIZE 850X460X780 850X460X780 850X460X780
20’GP/40'HQ CAPACITY 105X210 105/210 105X210
