Yongkang Baset Baees Machinery Co., ltd

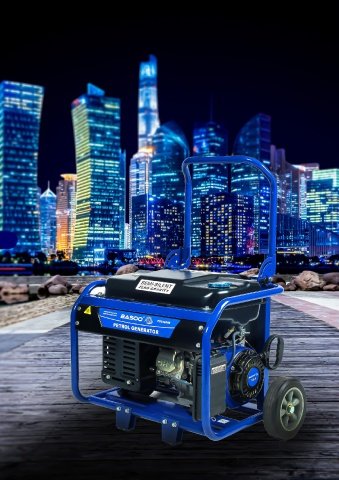

GASOLINE GENERATOR
L TYPE P TYPE 02
C TYPE C TYPE
ALTERNATOR ENGINE TANK
POWER (WATT) MAX POWER VOLTAGE DISPLACEMENT N.W/KGS G.W/KGS BOX SIZE
SIZE MODEL CAPACITY
2000W 2200W Φ160MMX100MM 220V-230V-50HZ 170F 212cc 15L 33 34 600x440x440mm
3000W 3200W Φ160MMX120MM 220V-230V-50HZ 170F 212cc 15L 38 40 600x440x440mm
5000W 5500W Φ190MMX140MM 220V-230V-50HZ 188F 390cc 25L 85 87 720x565x585mm
6000W 6500W Φ190MMX148MM 220V-230V-50HZ 190F 420cc 25L 87 89 720x565x585mm
7000W 7500W Φ190MMX158MM 220V-230V-50HZ 192F 440cc 25L 90 92 720x565x585mm
8000W 8500W Φ190MM+204MMX158MM 220V-230V-50HZ 194F 460cc 25L 92 94 720x565x585mm
9000W 9500W Φ204MM+210MMX158MM 220V-230V-50HZ 196F 480cc 25L 96 98 720x565x585mm
