Page 9 - micat

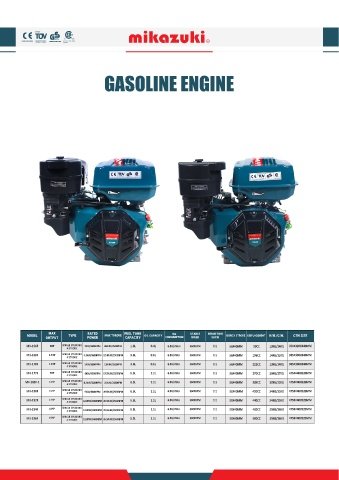

GASOLINE ENGINE GASOLINE ENGINE

MK-420CX MK-390CX

MAX RATED FUEL TANK
OIL
MODEL OUTPUT TYPE POWER MAX TORQUE CAPACITY OIL CAPACITY ELECTRODE STABLE REDUCTION BORE X STROKE DISPLACEMENT N.W./G.W. CTN SIZE
CONSUMPTION
SPEED
RATIO
MODEL POWER VOLTAGE N.W/KGS G.W/KGS
DIAMETER
MK-156F 3HP SINGLE CYLINDER 2KW/3600RPM 45N.M/2500RPM 1.6L 0.4L 6.8G/KW.H 3600RPM 1:1 56X40MM 99CC 13KG/14KG 350X320X340MM
4 STROKE
MK-168F 6.5HP SINGLE CYLINDER 4.1KW/3600RPM 12.4N.M/2500RPM 3.6L 0.6L 6.8G/KW.H 3600RPM 1:1 56X40MM 196CC 14KG/15KG 385X330X340MM
4 STROKE
MK-170F 7.5HP SINGLE CYLINDER 5KW/3600RPM 13N.M/2500RPM 3.6L 0.6L 6.8G/KW.H 3600RPM 1:1 56X40MM 212CC 13KG/14KG 385X330X340MM
4 STROKE
MK-177F 9HP SINGLE CYLINDER 6KW/3600RPM 17.5N.M/2500RPM 6.5L 1.1L 6.8G/KW.H 3600RPM 1:1 56X40MM 270CC 26KG/27KG 475X440X520MM
4 STROKE
MK-188F-1 13HP SINGLE CYLINDER 8.2KW/3600RPM 25N.M/2500RPM 6.5L 1.1L 6.8G/KW.H 3600RPM 1:1 56X40MM 389CC 32KG/33KG 475X440X520MM
4 STROKE
MK-190F 15HP SINGLE CYLINDER 9KW/3600RPM 26.5N.M/2500RPM 6.5L 1.1L 6.8G/KW.H 3600RPM 1:1 56X40MM 420CC 34KG/35KG 475X440X520MM
4 STROKE
MK-192F 17HP SINGLE CYLINDER 12.2KW/3600RPM 26.5N.M/2500RPM 6.5L 1.1L 6.8G/KW.H 3600RPM 1:1 56X40MM 440CC 34KG/35KG 475X440X520MM
4 STROKE
MK-194F 18HP SINGLE CYLINDER 12.2KW/3600RPM 26.5N.M/2500RPM 6.5L 1.1L 6.8G/KW.H 3600RPM 1:1 56X40MM 460CC 35KG/36KG 475X440X520MM
4 STROKE
MK-196F 19HP SINGLE CYLINDER 12.2KW/3600RPM 26.5N.M/2500RPM 6.5L 1.1L 6.8G/KW.H 3600RPM 1:1 56X40MM 480CC 35KG/36KG 475X440X520MM
4 STROKE
MK-220 BS-220X
